Most extensive chair parts replacement catalog online

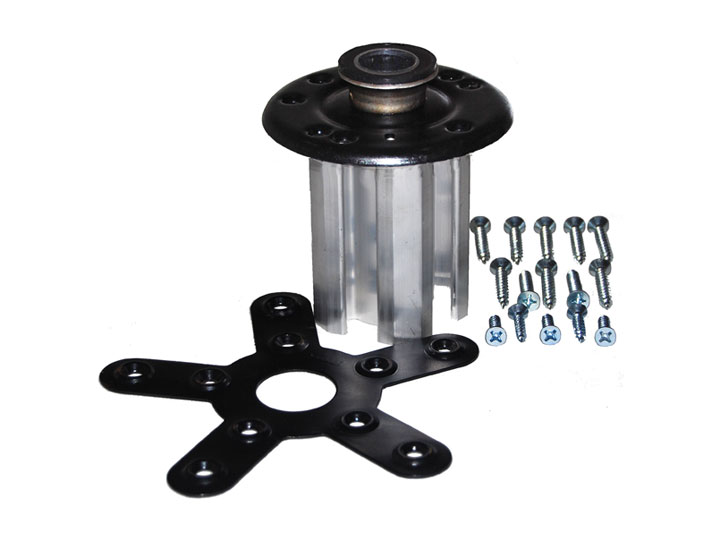

5 leg dovetail hub and bottom plate with included installed hub liner for 1" threaded posts.
Includes all screws. Some original factory installations used incorrect sized screws for the top and bottom plates. Our top or bottom screws are included with each purchase and correctly sized for either Hub or bottom Plate.
5 Leg Dovetail Hub for Manual Antique type Chair
It is the bottom plate and screws which provide the strength needed to the legs. Many older 4-5 leg bases have broken screws which originally fastened the hub bottom plate. It is important to remove and replace those screws. Drill a 1 1/4" or preferably larger hole, and glue in an hardwood Hard Maple dowel rod. Purchase the Maple dowel rod first, then the drill bit to match the dowel rod. When glued and dry, drill a correct size pilot screwhole to fasten the bottom plate. Warning, a screw sized dowel pin is the wrong thing to use for a repair.
